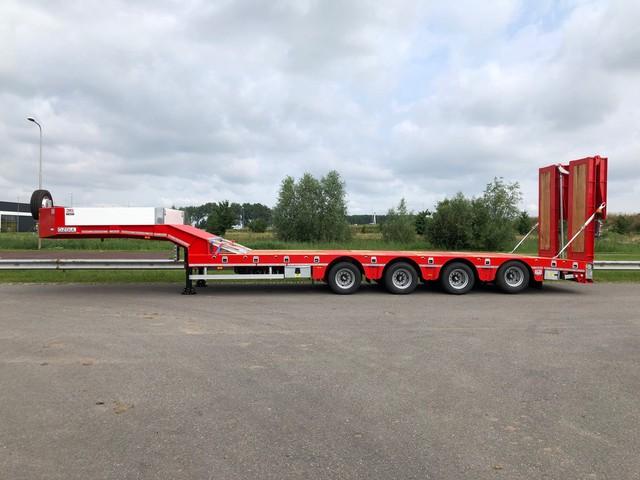

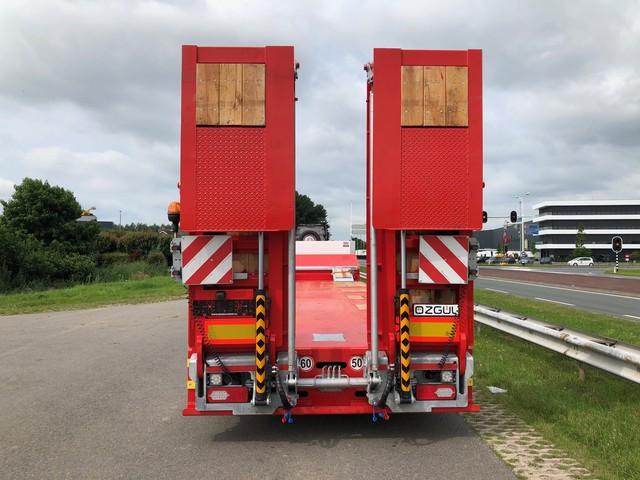

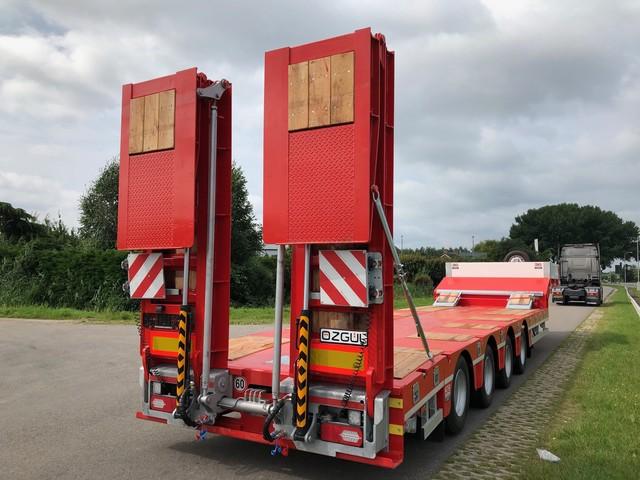

OZGUL LW4 with hydraulic foldable ramps EU specs 49.5

Model name: LW4 with hydraulic foldable ramps EU specs 49.5,

Sale type: For Sale,

{{ cf.title_en }}: {{ cf.value }},

Net price:	35000 €
VAT:	3500 €
Total:	38500 €

Price on Request

Product ID:	Bau-000039058
Price:	35000 €
Section:	Transportation
Category:	Trailers
Manufacturer:	OZGUL
Model year:	2021
Offer type:	Buy

Поделиться объявлением:

Offer Description

== Information in English == New: Yes Colour: Red CE mark: yes PRODUCT Brand : OZGUL Trailer Product Code : LW4 Product Definition : 4 Axles lowbed semi trailer CHASSIS Heavy duty and extra durability designed BOX type chassis All welded St 52-3 steel Chassis. Outer frame is UPE 240 profile AXLES Özkoç Trax or Osman Koç Turkish Brand Drum brakes 4 x 12 Ton axles SUSPENSION Air suspension SELF STEERING AXLE None LIFT AXLE 1.axle automatic lifting, 4. Axle manuel lifting. TIRES 17 x 245/70 R 17.5 (Goodyear Brand tires) RIMS 17 x 6.75 x 17.5(Ako Brand rims) KING PIN 2 position with 2x coupling-pen 2”(approved EU) (Çayırova Brand) LANDING GEAR Mechanical landing legs operated on 1 side with 2 speeds. Both landing legs operated by one rotary handle on the right side. (GOS Brand) BRAKE SYSTEM Wabco brake installation 2-line brake system according to EC-regulations. EBS 4S/3M with RSS (Roll Stability System). Pneumatic parking brake. 1x air coupling yellow. 1x air coupling red. 1x brake pressure valve (WABCO Brand) BRAKE CHAMBERS 2 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers FLOOR Above tyres and edges of platform are covered chequered sheet and breech hard wood,the middle surface is covered by flat sheet steel. ELECTRICAL SYSTEM 2x7 pin sockets 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear 2 tail & stop combined lamps (red) 2 turn signal combined lamps (orange) 2 license lamp (white) 2 Plaque places Electrical system all equipment brand is SABA LED lightining system. According to EC regulation,ADR adapted REAR RAMP Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic funsion with cable push – button for remote cont.Folding type rear ramps length 2500 mm +1500 mm width 900 mm,covered all steel.Rear ramps are sliding internal and external hydraulic. ACCESSORIES ➢ 2 x 9 pcs of heavy duty lashing rings mounted on the outer frame mushroom type ➢ 4 x Certificated Expray mud flaps. ➢ 1 x 30 lt water tank ➢ 2 x Wheel chocks and holders(mounted goose neck front panel) ➢ 2 x 9 Galvanized sides extensions brackets 250 mm + 250 mm ➢ 1 x plastic tool box(in the goose neck) ➢ 1 x spare Wheel carrier with 1 tire(on the gooseneck) ➢ Manual support Legs(2 at the rear) ➢ High visibility lighting ➢ 2 x Reflective tape and reflector sign at the rear and sides. ➢ Steel front panel(height:400mm) ➢ Aluminum side panels on gooseneck section(height:400mm) PAINTING Before the painting, surface and accessories are made smooth and then cleaned with a mixture of water and chemicals.Sand blasting to SA 2.5, layer hyzinc ;upper hyzinc 60 microns of acrylic paint. COMPLETE RAL 3020 TRAFFIC JAM RED

Schiemerik 1 5334 NL Velddriel Netherlands
