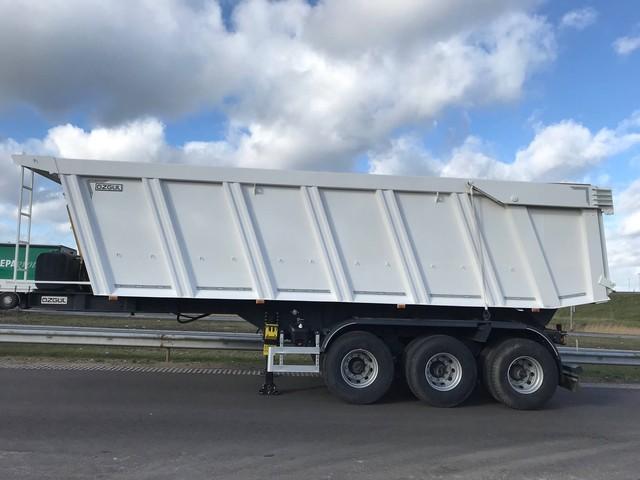

OZGUL 45 CBM Tipper Semi Trailer 3 axle | NEW

Model name: 45 CBM Tipper Semi Trailer 3 axle | NEW,

Sale type: For Sale,

{{ cf.title_en }}: {{ cf.value }},

Net price:	37000 €
VAT:	3700 €
Total:	40700 €

Price on Request

Product ID:	Bau-000039196
Price:	37000 €
Section:	Transportation
Category:	Trailers
Manufacturer:	OZGUL
Model year:	2019
Offer type:	Buy

Поделиться объявлением:

Offer Description

== Information in English == New: Yes Colour: White Serial number: NP9GA10W3KK025022 6x NEW 45 M3 ROCK TYPE TIPPER SEMI TRAILER Wheel Height : 1350 mm Total length : 9500 mm Case internal length top : 8905 mm Case internal length bottom : 8330 mm Total width : 3450 mm Case internal width : 2840 mm Total height : 3700 mm Case internal height : 2100 mm Axles group technical capacity : 48.000 kg King pin technical capacity : 14.000 kg Vehicle total technical capacity : 62.000 kg Empty weight : 14.000 kg Permissible Payload : 60.000 kg Chassis Welding : ARC submerged Upper structure : Robot welding Chassis Heavy duty and extra durability designed I beam main chassis; Opting for high tensile steel ST 52.3 A welded by automatic Submerged-Arc processes. Top Flange 20 mm, width 150mm; Middle Flange 10 mm, Height 500mm, Bottom Flange 20 mm, width 150mm. Goose neck area chassis 10 mm, Height 180mm, Bottom Flange 20mm,width 150mm Space between both chassis 1 landing gear area. Case Volume: 45 Cbm Floor plate: HB 450 thickness 8mm Side walls plate: HB 450 thickness 6 mm Front wall: HB 450 thickness 6 mm Read door: HB 450 thickness 6 mm Luggage front wall: HB 450 thickness 6mm Tipper body cornerx 8 mm HB450 50x50 cm steel cover for whole length Shape of tipper Shape of the tipper body is rock type. Rear door of the dumper will be covered and operating with manual operating system bottom to up side door made with U type profile. Cylinder(Lift) Five stages are hard chromed,working pressure,170 bar, maximum working pressure is:190 bar, all cylinder meterials are ST 52 cold drawn big lift code no:GHS 197-5-5550 C .(hidromas brand Turkish) Tipping angle degree is minimum 45 degree. / all tipping kits included, you will mount on your truck pto and pump. Oil tank 150 lt loading capacity tank Axles 3 x 16 Ton axles with Mechanical spring suspensions Upper slung type / Drum brakes Tires 13x13R22.5 Rims 13x9.00x22.5 Brake system Wabco ABS air brake system acting on all wheels (Adr adapted) All companents Brand Wabco According to EC regulation,ADR adapted Brake Chambers 2 axles with 4 units T 30/30 emergency brake chambers 1 axles with 2 units T 30 service brake chambers Electrical system 2x7 pin sockets - 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear 2 tail & stop combined lamps (red) 2 turn signal combined lamps (orange) 1 license lamp (white) 1 revolving lamp rear Electrical system all equipment brand is SABA Brands ADR adapted Landing Gear Front: Jack feet are telescopic, parallel working, double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity (GOS Brand) King Pin 2 + 3.5 inch king pin detachable from below made by SAE standards 8 bolt type Accessories Front top has baggage for tent place. 2 x Mudguards which covers tires belongs to rear axle group metal end part plastic 1 x 60 lt plastic water tank 1 x Wheel chocks and holders 1 x Metal tool box 1 x Spare Wheel carrier with 1 tire 2 x Aluminum side protections 1 x Metal ladder front right 1 x Metal ladder rear right side 1 x Rear bumper square and removable type 2 x 7 Rubber under tipper, On chassis. Reflective tape and reflector sign at the rear and sides Painting Chassis :RAL 7021 Grey , Body: RAL 9016 White.

Schiemerik 1 5334 NL Velddriel Netherlands
