METALIKA RVP-3000 Automatic RVP-3000 Concrete block and paver making machine

Model name: RVP-3000 Automatic,

Sale type: For Sale,

{{ cf.title_en }}: {{ cf.value }},

Net price:	0 €
VAT:	0 €
Total:	0 €

Price on Request

Product ID:	Bau-000010378
Price:	0 €
Section:	Construction machinery
Category:	Concrete equipment
Manufacturer:	METALIKA
Model year:	2020
Offer type:	Buy

Поделиться объявлением:

Offer Description

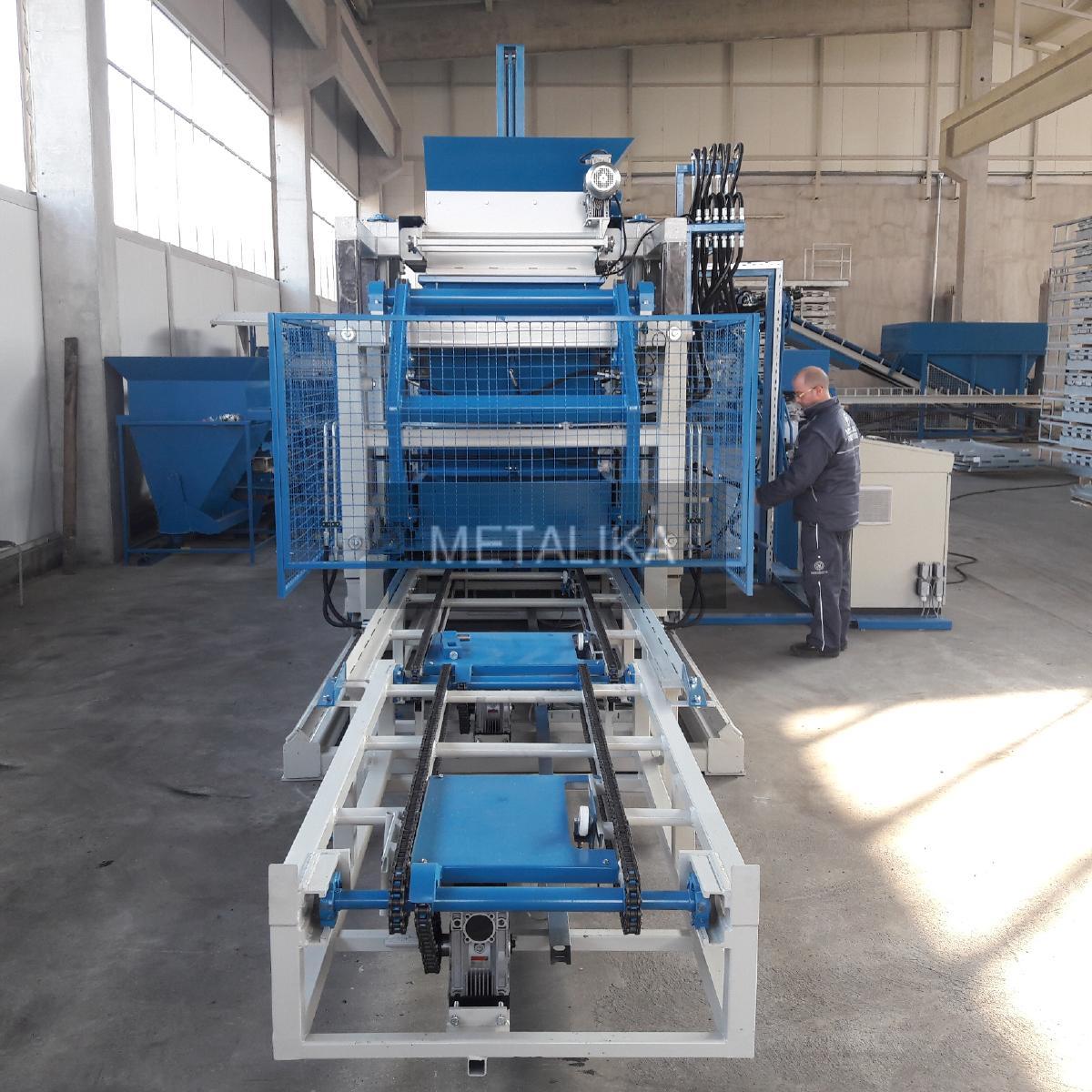

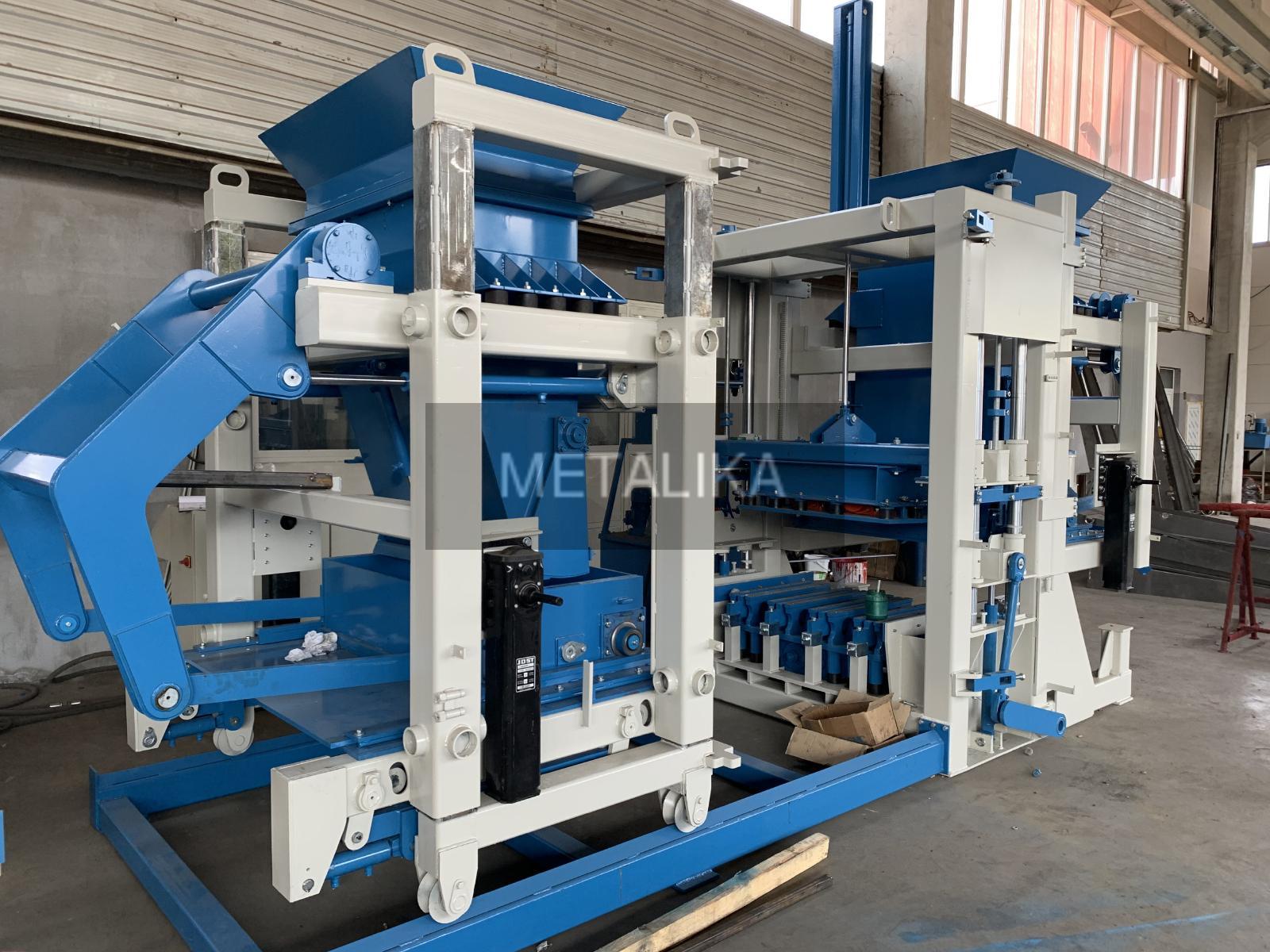

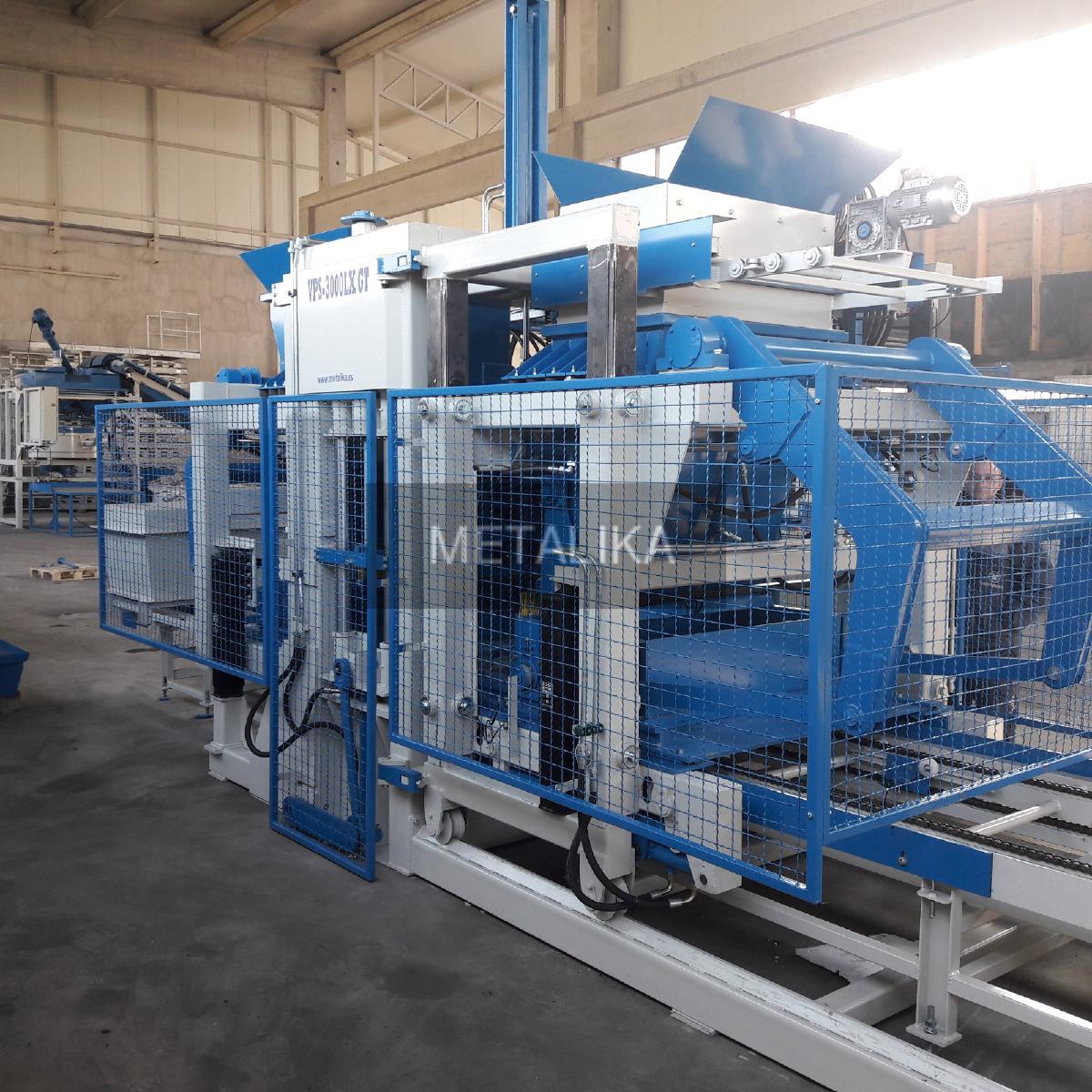

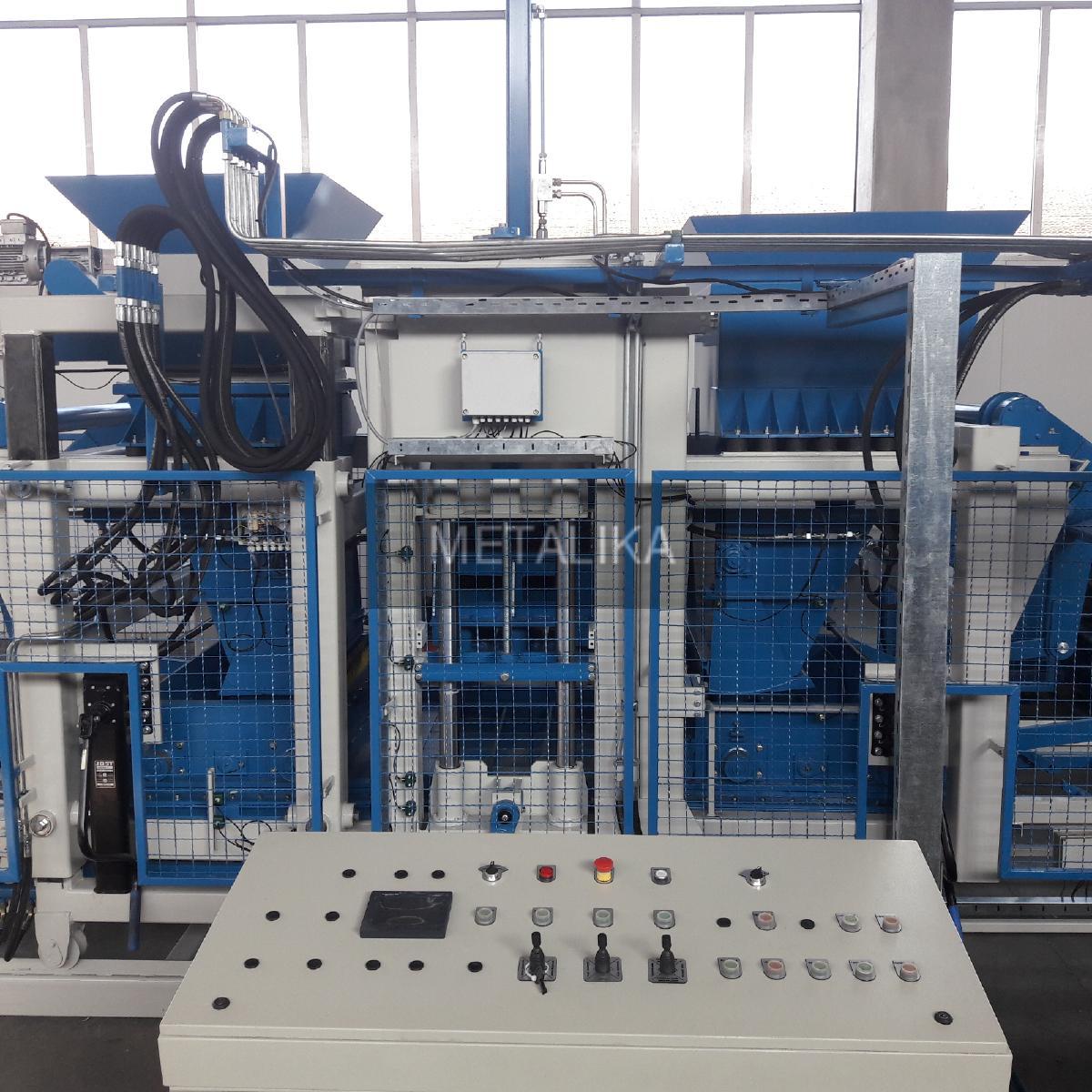

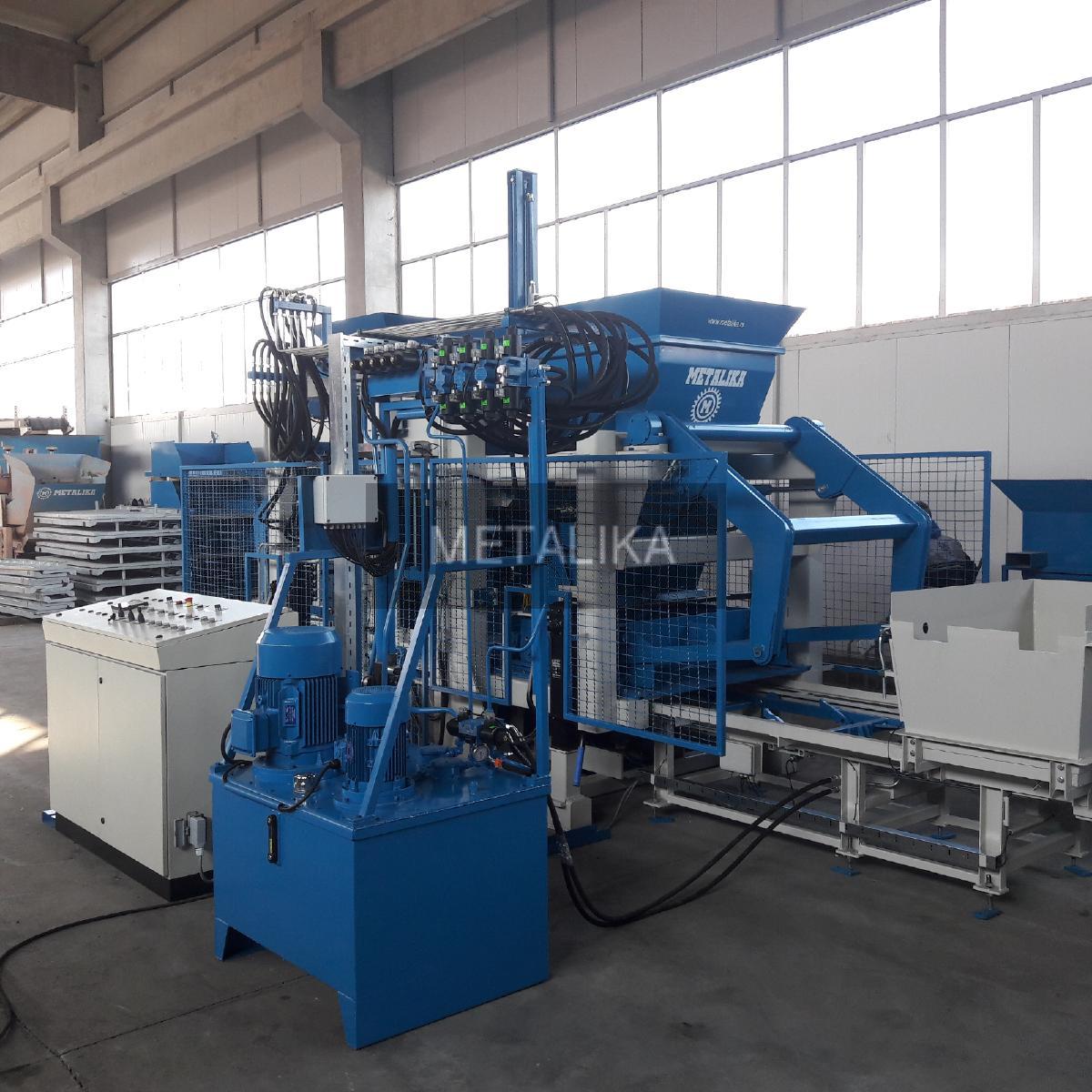

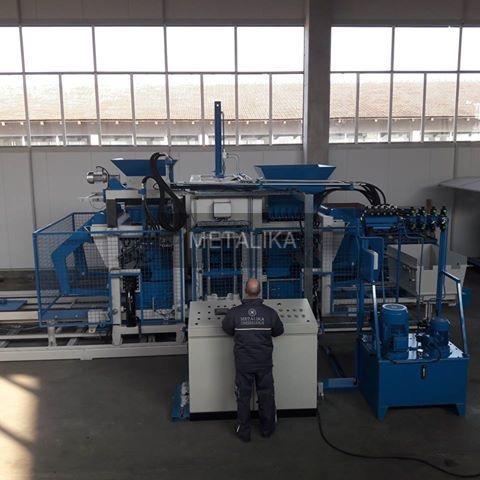

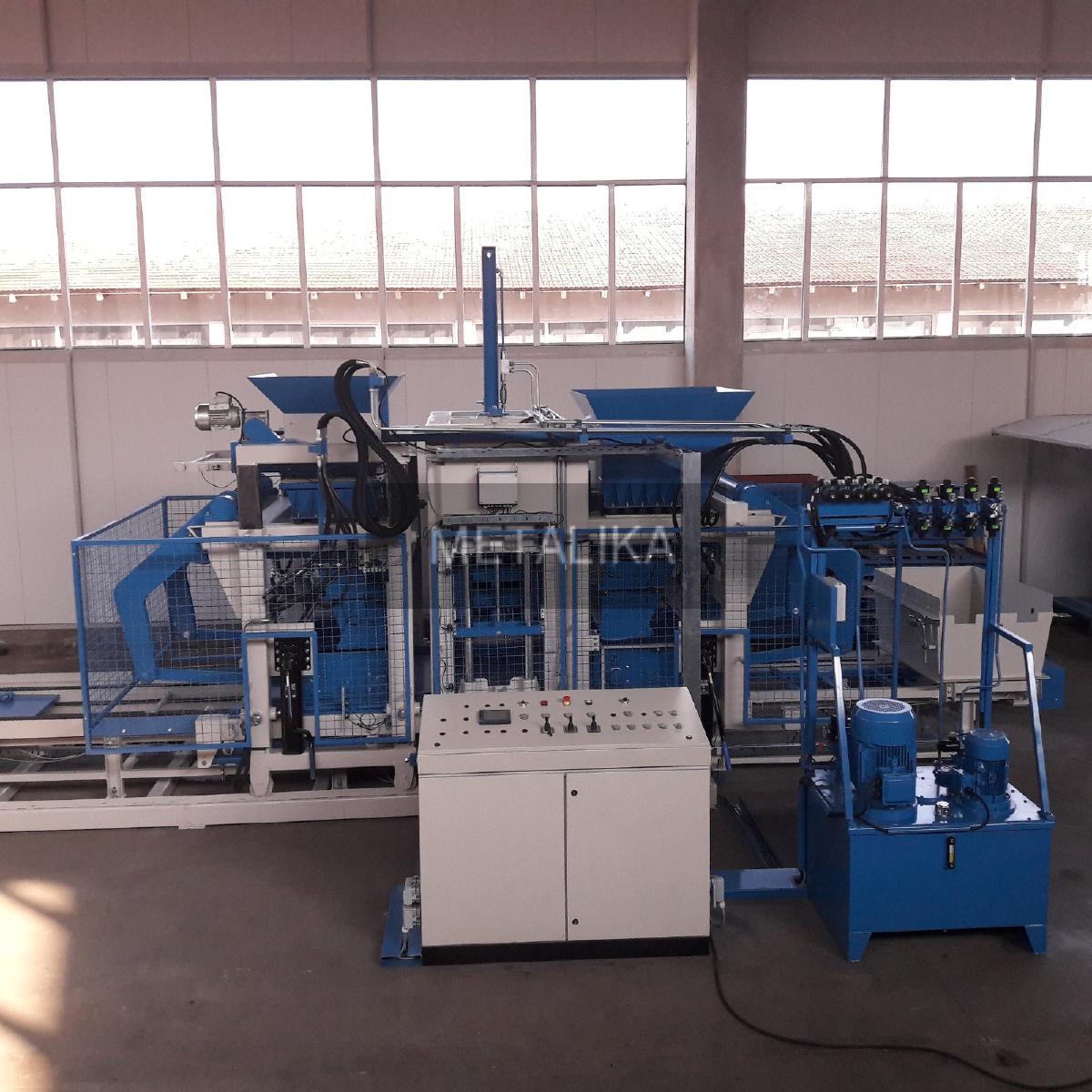

Concrete block machine (concrete block and concrete pavers machine) RVP-3000 METALIKA is highly productive stationary vibrating press for concrete blocks, concrete pavers, concrete curbstones. RVP-3000 concrete block machine puts down finished concrete elements on wooden palette. Concrete supplying is done by fork lifter with concrete basket, by belt conveyors or concrete lifting basket. Concrete dosing is performed through dozers for fine and rough concrete. Element forming is in the mold under the hydraulic pressure and vibrations on the lower as well as upper side of the mold. Finished element is pushed to back end of the machine together with wooden palette, and another palette automatically takes its place. Reception desk for finished elements has capacity of 5 pallets. Concrete paver and block machine RVP-3000 can be united in line with palette elevators and pallet return line. After that pallets can be driven with fork lifter or special manual fork lifter. This machine can be additionally equipped with automatic control unit when cycle time is reduced, and capacity is increased. MAIN FEATURES for Concrete block machines RVP-3000 METALIKA: Versatile – wide product range, product height from 25-350mm. Mid-level productionof concrete products. Semiautomatic or automatic operation. Hoppers and feeders for face and base concrete mix. Stationary – single pallet. Pallet feeder. Conveyor for concrete products on wet side. Extra rigid machine frame structure made. Precise concrete product height control. Simple to use and maintenance. Vibration table with knocking bars enables precise concrete product height. SINHRO , controlled vibrations for maximum product quality. SINHRO vibration system comes as standard equipment for RVP-3000. Tamper head brush. OPTIONAL FEATURES for Concrete block machine RVP-3000 METALIKA: Automatic control unit PLC and automatic program for even higher productivity and accurate cycle duplication. Color mixdraw plate and hopper for additional value of products. Modem link to Metalika technical service department. Cross-cleaner Tamper brush. Draw plate – Insertion device for insulation blocks. Core puller device – for special products. Special pallet feeder with lifting – to extend pallet life. Electric device – to open face mix hopper. Agitator for concrete – device in filler box which decrease mould filling time. PRODUCT RANGE for Concrete block machine RVP-3000 METALIKA: Paving stones (pavers, slabs, tiles, interlocking and rustical pavers) Curb stones (kerbs) Hollow blocks Solid blocks Retaining wall elements and similar concrete products Chimney blocks Other small concrete precast products TECHNICAL DATA for Concrete block machine (automatic) RVP-3000: Production area / mould size: 1320x650mm Product height for pavers and blocks: 25-350mm Product height for curbstones (with or without cross-cleaner brush): Up to 250 with cross-cleaner or 300mm without cc Pallet size: 1400x700mm Pallet feeder: Yes Varioflex vibrations: Yes Capacity hollow blocks20x20x40cm (8’’): 13.000 blocks / 8h Capacity two layer paver 20x20x6cm: 860m2 / 8h Operation mode: Automatic mode

Metalika 11450 Sopot Serbia
