METALIKA SVP-12 Concrete block making machine (Block machine)

Model name: SVP-12,

Sale type: For Sale,

Price on Request

Product ID:	Bau-000010505
Section:	Construction machinery
Category:	Concrete equipment
Manufacturer:	METALIKA
Model year:	2020
Offer type:	Buy

Поделиться объявлением:

Offer Description

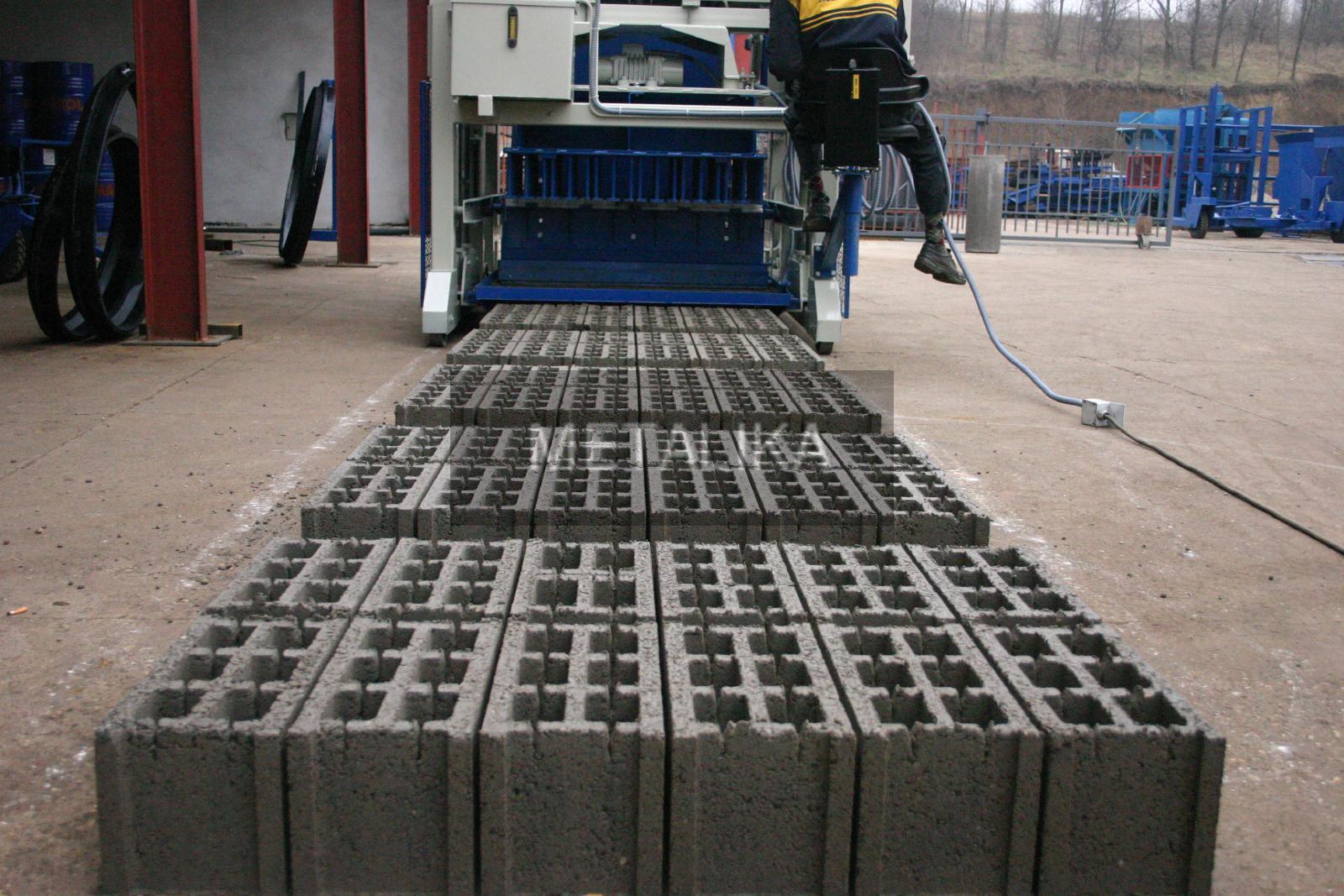

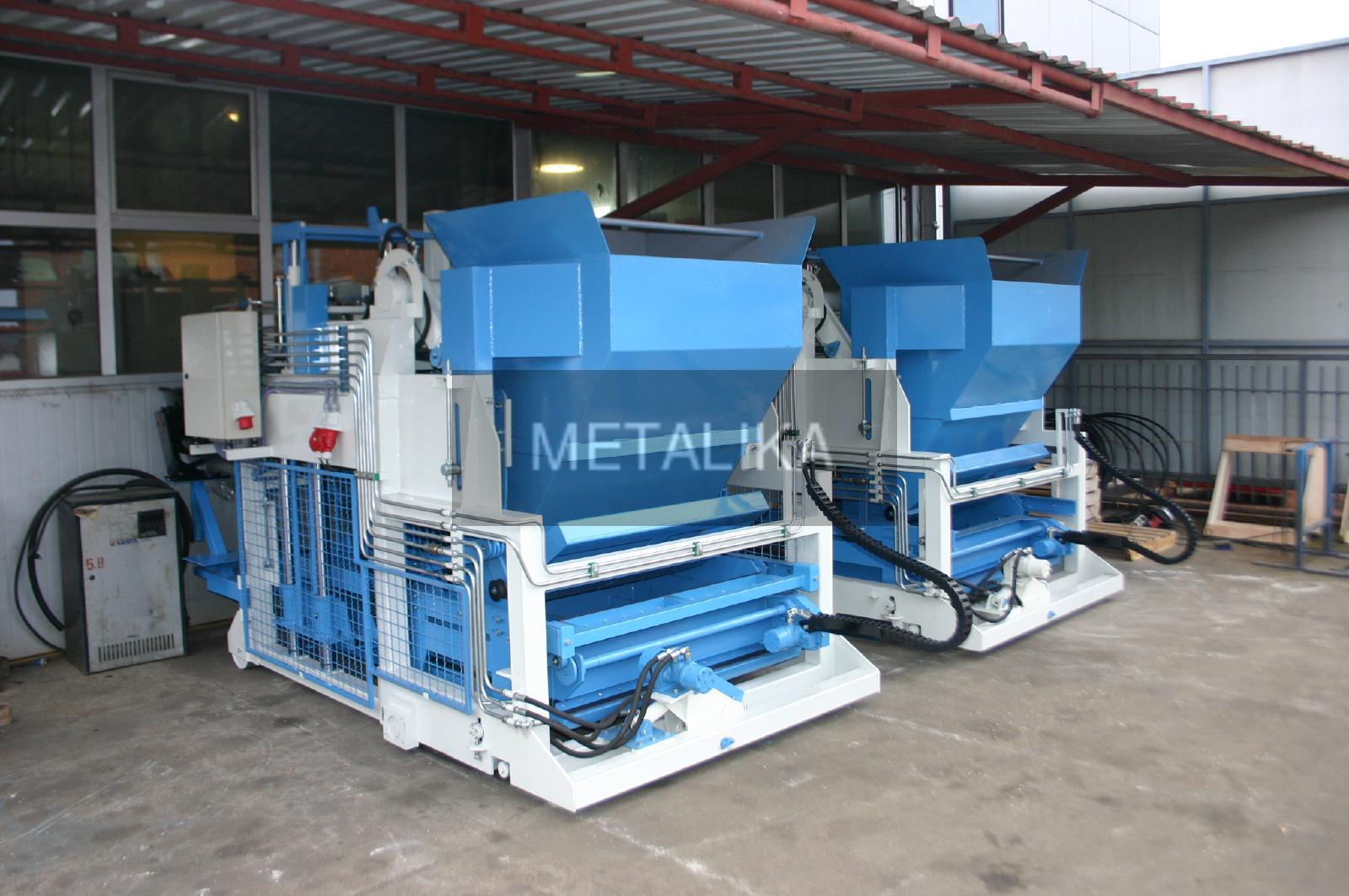

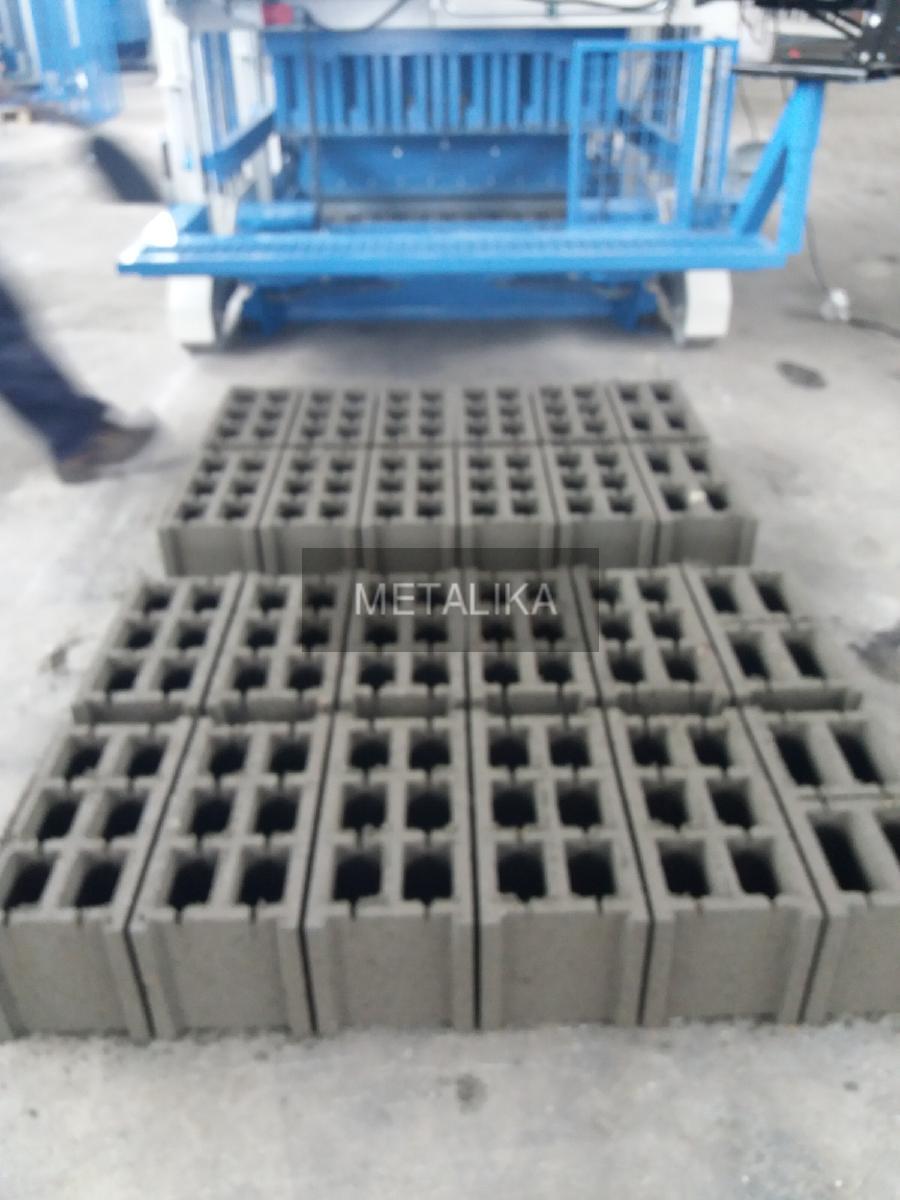

SVP-12 is a highly productive concrete block / egg layer machine for producing all kinds of building concrete blocks. This machine has its own drive in all directions. The concrete mixture is transported to the machine by a fork-lift truck with a concrete silo. Concrete is stored in a concrete silo which is built in the machine and afterwards concrete is fed into the mould through hydraulic feeding unit. The products are shaped in the mould under strong vibrations on the mould and tamper head. TEHNICAL DATA for Movable Concrete Block Machine SVP-12 GT: Length[mm]: 3200 Height[mm]: 2500 Width[mm]: 2300 Machine weight without of moulds [kg]: ~ 2700 Mould weight [kg]: ~ 600 Useful tool surface: 1200 x 800 Height of products: 190 ÷ 330 Number of cycles min - max: 72 / h - 120/h Capacity (block 20 x 20 x 40) semiautomatic: 1200 pieces/h Capacity (block 20 x 20 x 40) automatic: 1400 pcs/ h Power [kW]: 7.5 Power of vibrating motors[kW]: 4 x 0.37 and 2 x 1.1 Gear power [kW]: 1.8 Installed power[V]: 3 x 400 Drive: Hydraulic For more information or offer with molds, send inquiry on email. We have different type and model for Egg Layer Machine for concrete blocks.

Metalika 11450 Sopot Serbia
