Hd Pe Rohrziehkopf Pulling Heads Towing Heads

Model name: Hd Pe Rohrziehkopf,

Sale type: For Sale,

Price on Request

Product ID:	Bau-000011231
Section:	Construction machinery
Category:	Drilling equipment
Manufacturer:	Other
Model year:	2021
Offer type:	Buy

Поделиться объявлением:

Offer Description

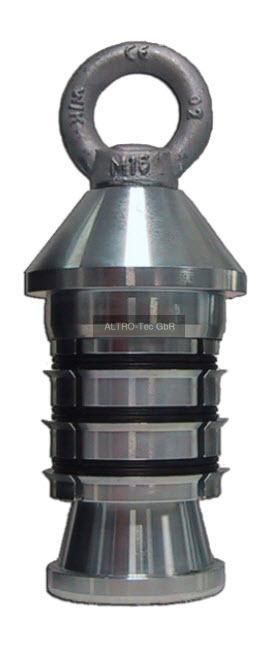

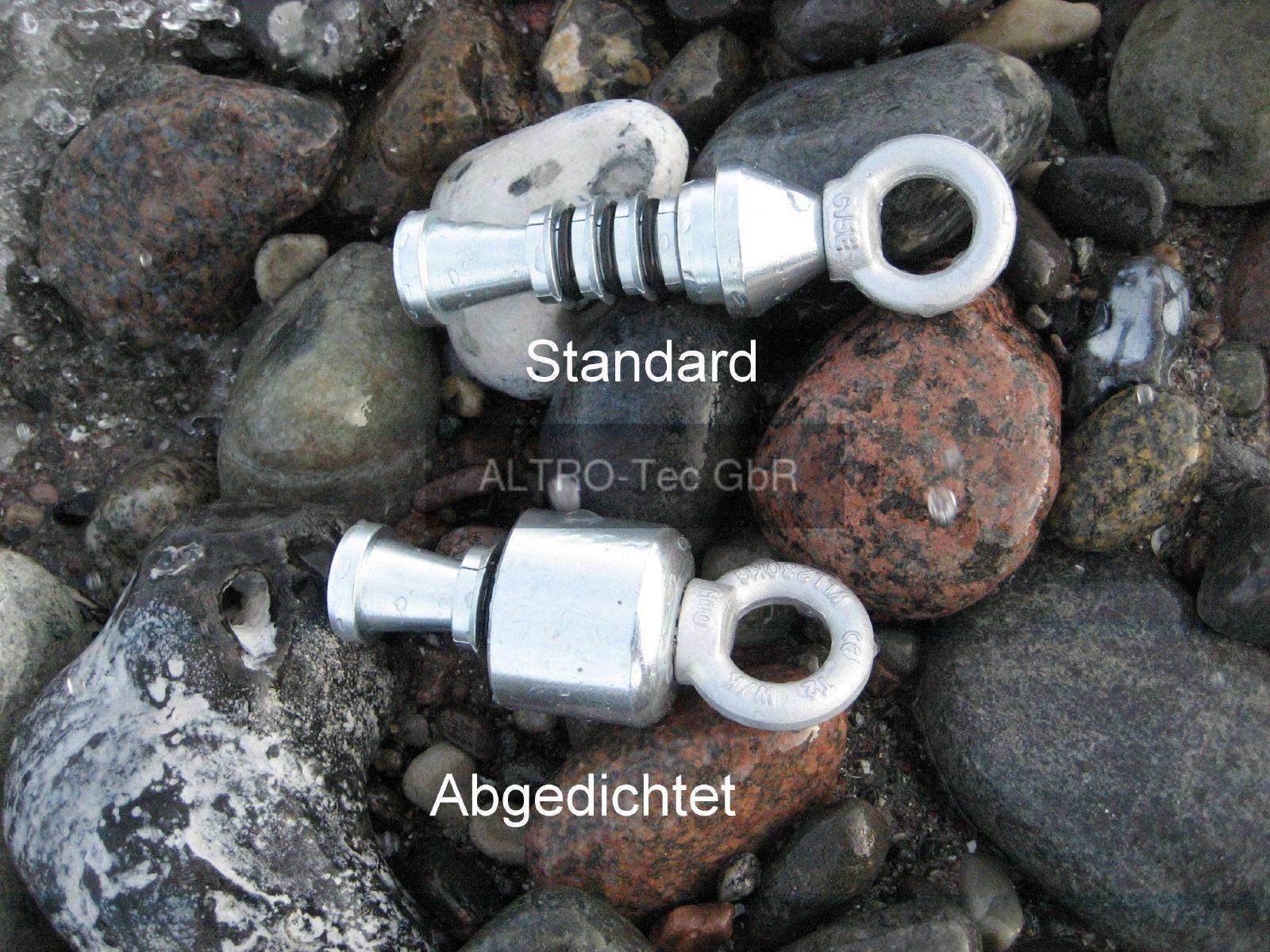

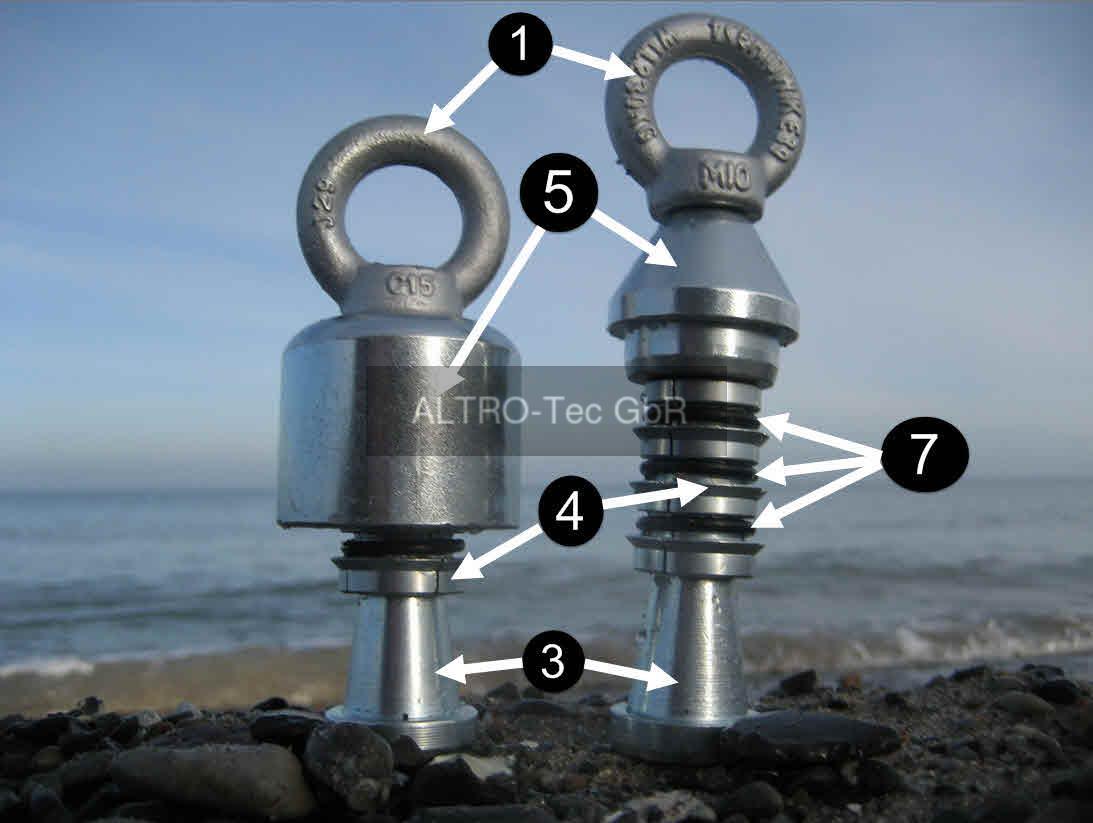

ADS pullingheads are easy to use and don't need any more tools for mounting. Depending on the way to use, you separate them into two types: sealed and standard Typ A sealed Typ B standard Order-Nr. Order-Nr. Pipe size OD working range PH 032-200 PH 032-100 Ø 32 mm 24 - 28 PH 040-200 PH 040-100 Ø 40 mm 32 - 36 PH 050-200 PH 050-100 Ø 50 mm 39 - 47 PH 063-200 PH 063-100 Ø 63 mm 49 - 60 PH 075-200 PH 075-100 Ø 75 mm 59 - 70 PH 090-200 PH 090-100 Ø 90 mm 71 - 85 PH 110-200 PH 110-100 Ø 110 mm 87 - 103 PH 125-200 PH 125-100 Ø 125 mm 99 - 116 PH 140-200 PH 140-100 Ø 140 mm 111 - 130 PH 160-200 PH 160-100 Ø 160 mm 127 - 148 PH 180-200 PH 180-100 Ø 180 mm 144 - 166 PH 200-200 PH 200-100 Ø 200 mm 158 - 184 PH 225-200 PH 225-100 Ø 225 mm 178 - 206 PH 250-200 PH 250-100 Ø 250 mm 198 - 230 Type A sealed Type B standard Number designation Size + Order-Nr. Size + Order-Nr. 1 ringscrew RE _ _ _ + 015 RE _ _ _ + 215 3 Lower cane RE _ _ _ + 016 RE _ _ _ + 016 4 Moveable part RE _ _ _ + 020 RE _ _ _ + 020 5 Cover / cone RE _ _ _ + 030 RE _ _ _ + 230 7 O-ring set RE _ _ _ + 050 RE _ _ _ + 250 material: High quality steel - galvaniized - reinforced version Available from 32 - 355 mm pipe outside diameter We have large stock and fast delivery world wide, dealer inquiry are welcome.
