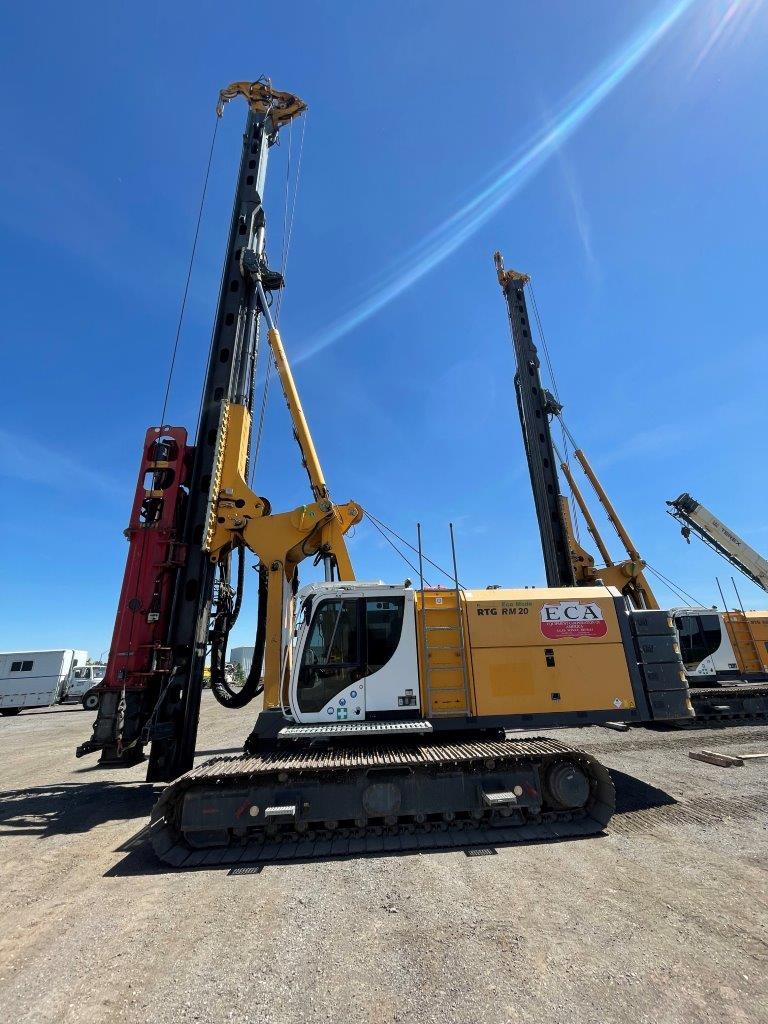

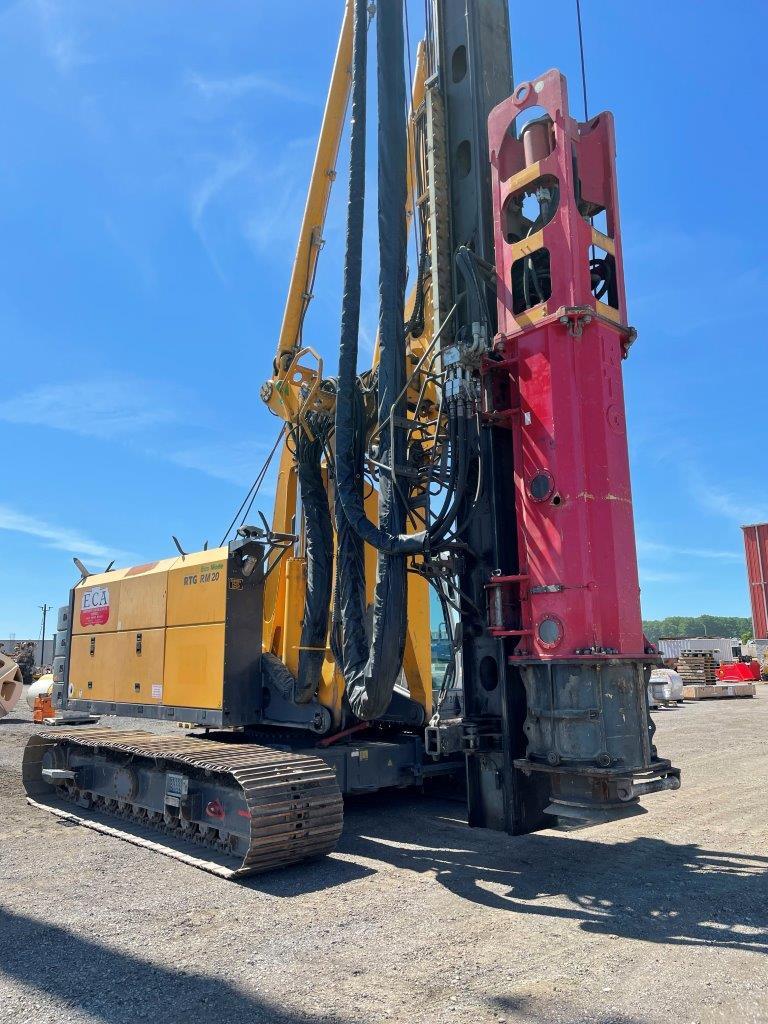

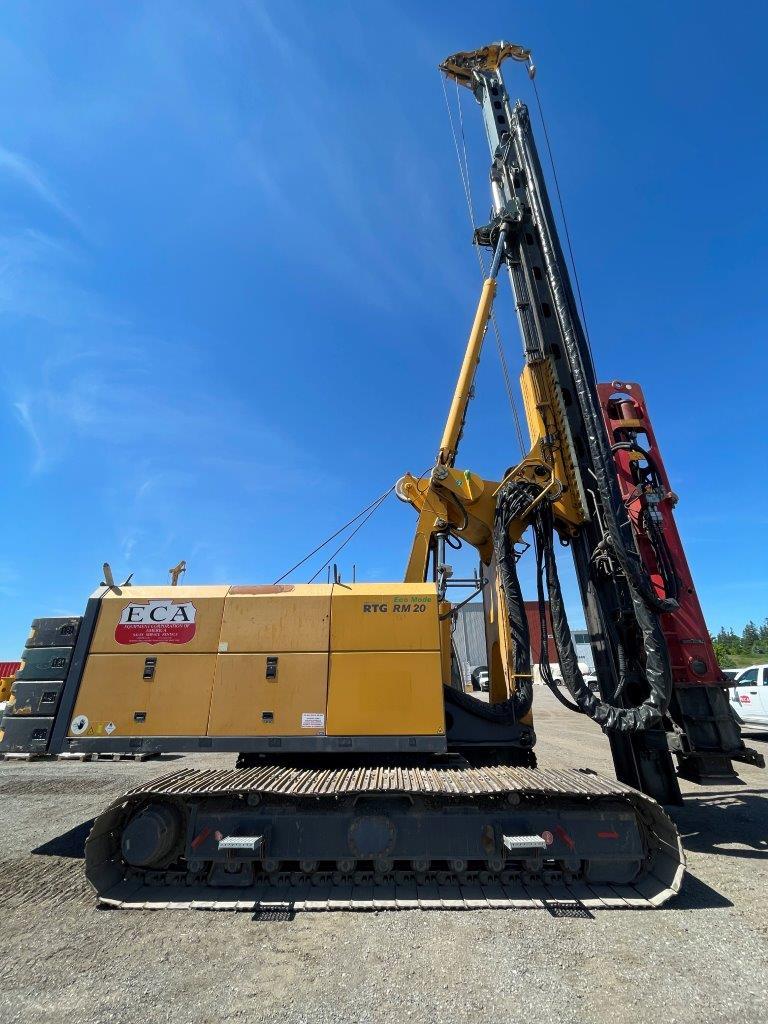

RTG RM20 with HRS5 Hydraulic Hammer

Model name: RTG RM20 with HRS5 Hydraulic Hammer,

Sale type: For Sale,

{{ cf.title_en }}: {{ cf.value }},

Net price:	423952 €
VAT:	42395.2 €
Total:	466347.2 €

Price on Request

Product ID:	Bau-000017249
Price:	423952 €
Section:	Metalworking equipment
Category:	Drilling Equipment
Manufacturer:	Other
Model year:	2014
Offer type:	Buy

Поделиться объявлением:

Offer Description

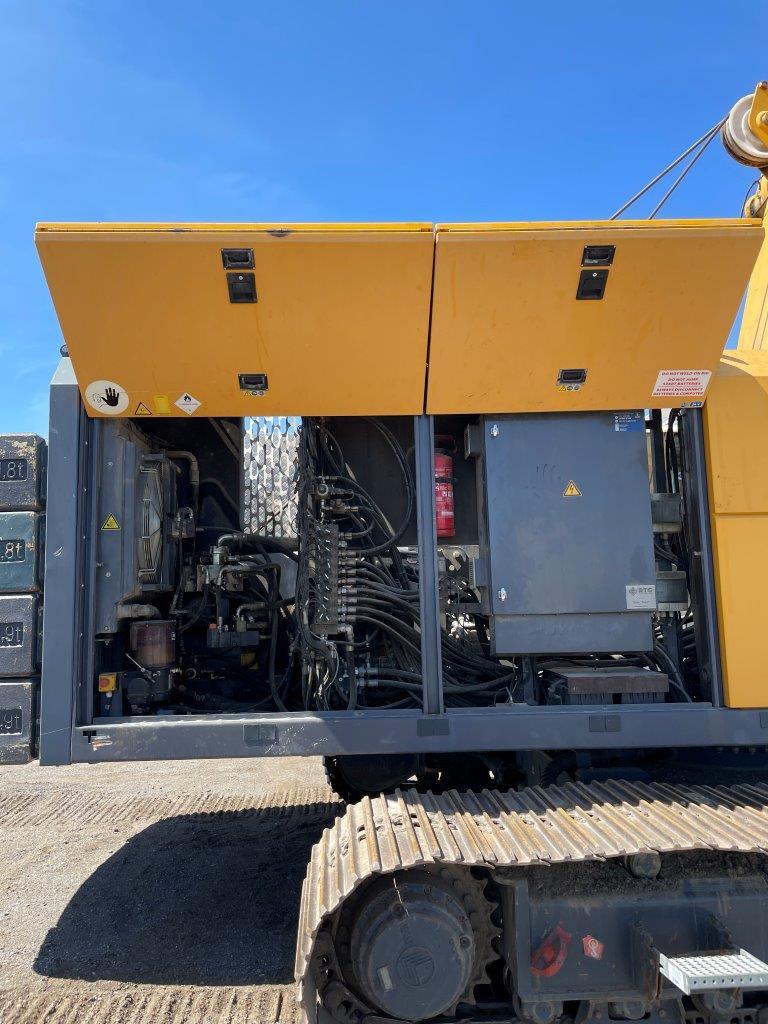

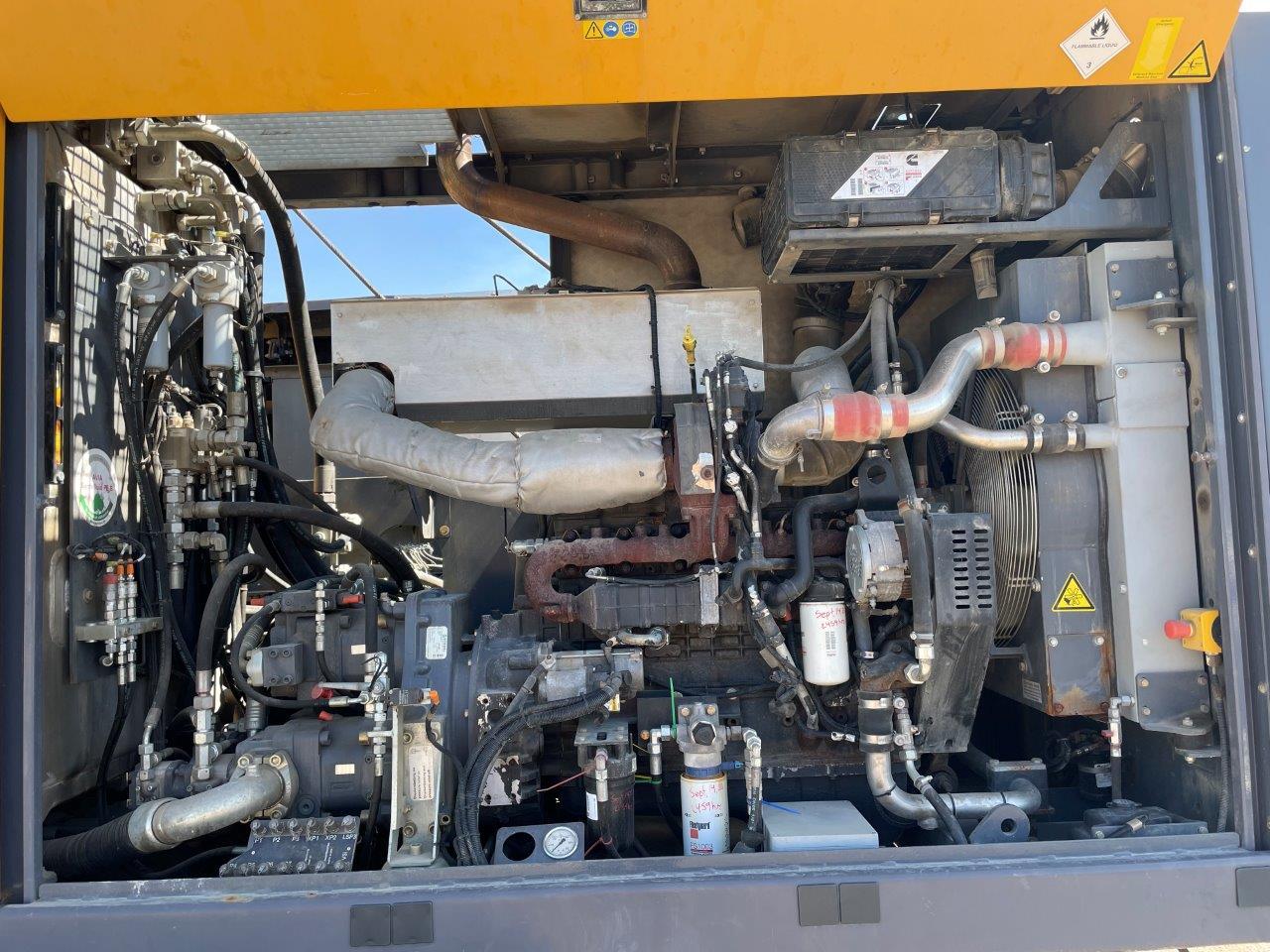

RM 20 PILE-DRIVER - Fixed leader * Constructed in two sections * Vertical movement by up to 7 m * Attachment option for pre-drilling unit - Mast head * Integrated rope damping system * Mast head tiltable foldable for transport position * Hydraulically operated mast head bolting * Rope pulleys with bolts for winch ropes * Automatic hoist limit switch - Leader Guides * Lower leader guide c/w stroke cylinder * Low-friction high-performance sliding guide * Consoles for longitudinal and lateral leader inclination with 2 inclined stay cylinders * Leader steplessly adjustable in both longitudinal and lateral direction - Kinematic linkage system * Parallelogram kinematic triangle * Boom with 2 hydraulic cylinders and boom support - Upper Carriage *RTG BT55H * Special upper carriage frame with longitudinal members * Upward-folding service doors * Rotating light beacon at rear and 4 spot lights * Audible warning device * Electric fuel pump and fire extinguisher * Catwalk grating (alongside operator's cab) * Access ladder * Tool box c/w set of tools - Engine * Cummins QSB 6.7(water cooled) * Conforms to EU Stage III A / US Tier 3 Exhaust Emission Standard (Tier 4 Interim) * Infinitely variable speed control - Winches * Max. Line pull hammer winch: 100 kN * Max. Line pull pile winch: 80 kN - Hydraulic System * 2 main pumps performance-controlled plus 1 auxiliary pump * Integrated hydraulic oil cooler * Hydraulic tank with return flow filtering * Diagnostic panel for hydraulic functions - Slew Drive * Axial piston motor with brake valves * Planetary gear drive running in oil bath with oil-cooled and oil-lubricated multi-disc parking brake * Strengthened ball-bearing slew ring with outer teeth - System control and accessories * SPS microprocessor control * Electronic pilot control system * Automatic leader alignment * Automatic main rope control * Special burst pipe protection on hydraulic cylinders - Operators cab * Bauer high-comfort operator cab with roof-light and tinted side windows, sliding door with integrated sliding window * B-Tronic hammer operation module with touchscreen and color display * Cab heater and air conditioning system * Radio with CD player * High-comfort operator seat - Counterweights * Counterweight elements removable for transport purposes * Stackable and expandable - Undercarriage * Undercarriage type UW 60 F * Steplessly retractable * Lashing points on crawler frames for transport purposes - Technical specifications RM20, BT55H, UW60F * Max. Extension of stroke cylinder: 7.0 m * Total stroke height depending on front-end attachment: 20.0 m * Max. Leader inclination (lateral): +/- 18.5° * Max. Leader inclination (forward/backward): +18.5/-45-0° * Max. Torque on leader: 150 kNm * Rated power output of diesel engine: 201 kW * Diesel engine speed: 2000 rpm * Diesel tank capacity: approx. 600 l * Max. Oil flow for front-end equipment: 2 x 213 l/min * Max. Working pressure: 350 bar * Main hydraulic oil coolers: 2 x 90 kW * Hydraulic tank capacity: approx. 620 l * Counterweights: 2 x 1.8 t and 1 x 4.9 t * Tractive power undercarriage: approx. 460 kN * Travel speed: 0-1.46 km/h UPGRADES - Upgrade package for Main winch to 133 kN *Winch category M6 / L3 / T5 - Installation of a centralized lubrication including mast head lubrication - Hydraulically pile-guide - Upgrade base carrier *Toolbox in front of the operator's cabin - Hydraulic Oils *Supplied with biodegradable Hydraulic-Oil AVIA PEB 30 (also appropriate for low-temperature conditions down to -40°C / -40°F) -Camera Systems *Rear view camera upper carriage (right side and back) - Motor / Hydraulic system *Diesel-Engine EU Stage III B / US Tier 4 Interim *Cummins QSB 6.7 (water-cooled) *Rated output 201 kW / 270 HP - Low temperature kit For operating the machine under very low temperature conditions * Auxiliary heating for operators cab with timer * Electrical pre-heating unit for hydraulic tank (heating rod) * Electrical cooling water pre-heater * Diesel-fuel-filter with heating 24 V / 200 W * Filling of hydraulic oil tank with special hydraulic oil for extremely low temperatures * Two Battery heaters * External power supply (230 V / 50 Hz) required -Operators cabin *Protective Roof grating FOPS *Automatic air-conditioning system (BAUER Climatronic) *Premium high-comfort operator seat **Air cushioned, horizontal moveable **Weight and height adjustable, inclination adjustment **Head cushion, pneumatic lumbar spine backing **Seat and backrest heating - Counterweight *Additional counterweight piece 4,9 t / 10,802 l - BAUER B-Tronic *RM basic module **Depth measuring incl. sensors **B-Report Evaluation Software **Process Data- Recording and -Storage **USB-Stick **Recording depth (m / ft) *Bauer B-Tronic hydraulic hammer module c/w data logger **Energy per blow (kNm) **Number of blows **Crowd pressure (bar) **Hydraulic pressure in hammer (bar) **Mast inclination - RTG Hydraulic-Hammer HRS5 *Total weight with guides: 9.100 kg / 20,062 lb *Ram-Weight: 5.000 kg / 11,023 lb *Number of Blows: 50-120 1/min **Steplessly adjustable *Max. Blow-Energy: 72.000 Nm / 53,104 lbf-ft **Steplessly adjustable **Single blows and stepless positioning of piston possible *Hydraulic operating pressure: 200 bar / 2,900 psi *Hydraulic oil-flow: 250 ltr./min , 66 gal / min *Hydraulically power: 93 kW / 125 hp *Electrical power: 24V / 8 Amp. *Dimensions: **Length: 5.535 mm / 218” **Width: 1.006 mm / 40” **Depth: 1.193 mm / 47” - Drive Cap for pipe piles 300-762 mm / 12”–30” - Drive Cap Inserts for pipe-pile pile-helmet 300-762 mm / 12”-30” *Note: Drive Cap Insert necessary for each individual pile diameter - Drive Cap Insert for pipe-piles *14” Pipe Pile Insert *18” Pipe Pile Insert *24” Pipe Pile Insert *30” Pipe Pile Insert - Drive Cap Insert for concrete piles 300x300 mm / 12”x12”– 450x450 mm / 18”x18” *Note: Drive Cap inserts necessary for each individual pile seize - Universal Drive Cap adaptor with 17” square socket for use of Pileco standard Drive-Cap Inserts. *For Pileco standard Drive Cap Inserts please see separate list - Documentation: *Spare parts book, Operation Manual, Service-Book, Hydraulic- and Electric Schematics (1 paper print-out, 2 CD`s) *CE-Certificate - Options for Hydraulic hammer HR / HRS *Upgrade to BAUER B-Tronic with pile documentation - Locking Facility for Undercarriage UW60F *System of hydraulic cylinders locks the slide bars of the undercarriage once the tracks have been extended to operating position for eliminating any movements.

1 Merion Terrace 19018 Aldan, Philadelphia PA United States
