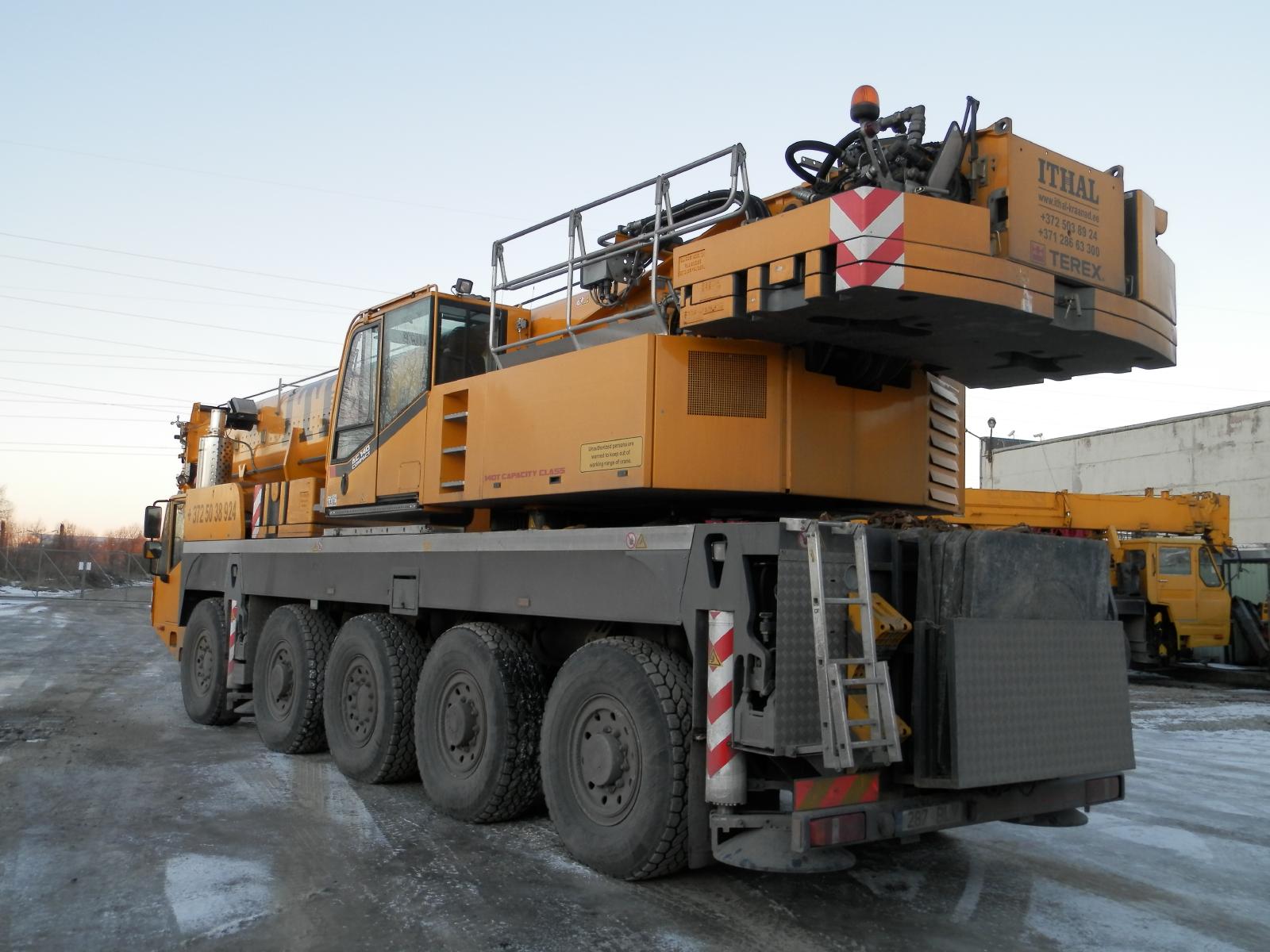

Terex-Demag AC 140 Compact

Model name: AC 140 Compact,

Sale type: For Sale,

{{ cf.title_en }}: {{ cf.value }},

Net price:	695000 €
VAT:	69500 €
Total:	764500 €

Price on Request

Product ID:	Bau-000019650
Price:	695000 €
Section:	Construction machinery
Category:	Cranes
Manufacturer:	Terex-Demag
Model year:	2014
Offer type:	Buy

Поделиться объявлением:

Offer Description

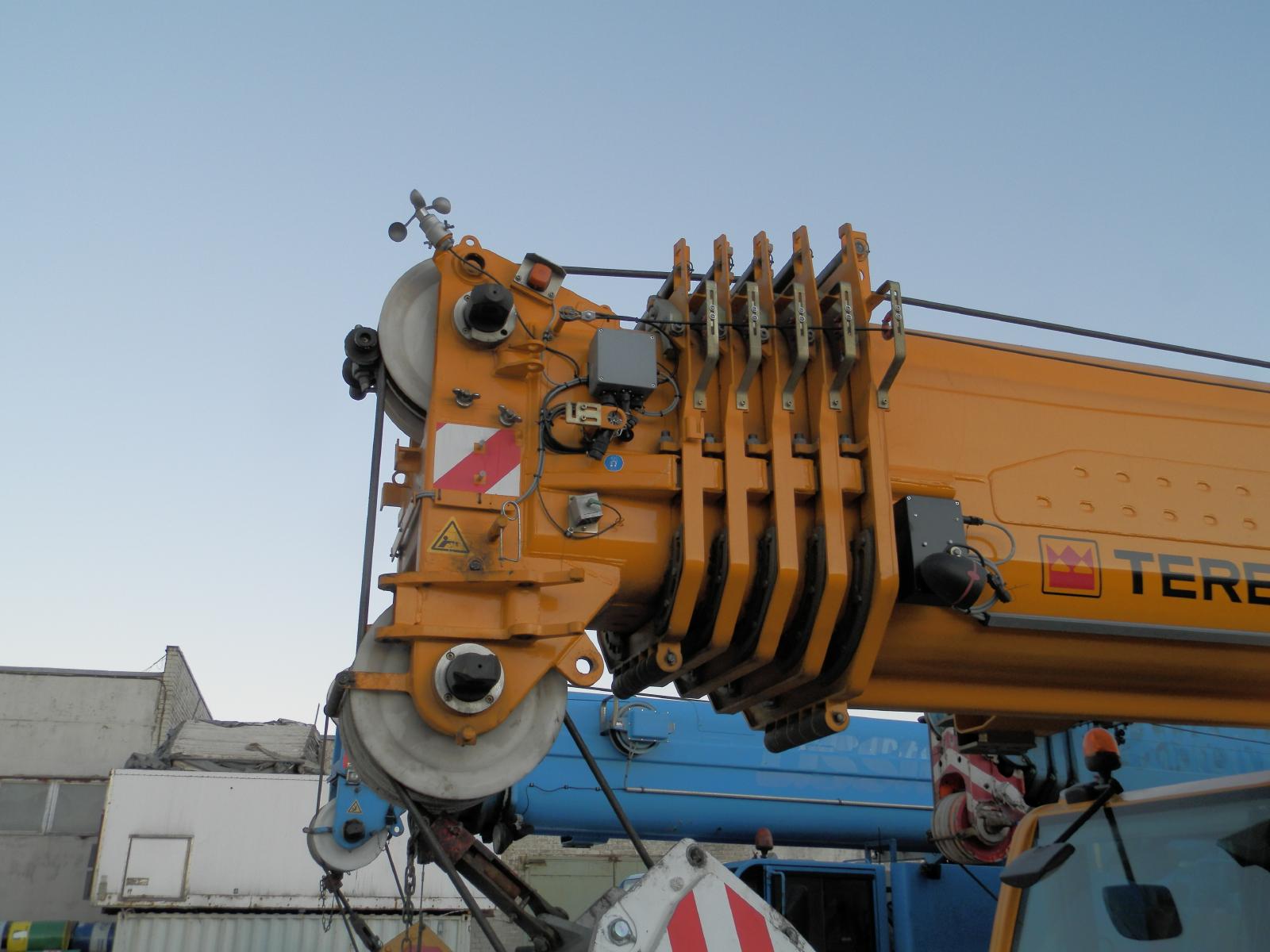

JIb 17m AC 140 COMPACT Basic equipment Carrier Engine 350-3a MTU (Mercedes); Output 350 kW (476 HP), torque 2300 Nm, certifications in accordance with EURO MOT 3a, TIER 3, CARB. Exhaust system cpl. stainless steel, incl. spark arrester. Fuel tank 500 500 l; Fuel: Diesel. Transmission AS16INT ZF AS-Tronic; Automated gearbox with integrated hydraulic retarder brake, 16 forward speeds and 2 reverse; 2-stage transfer case with switchable off-road gear. Axles 10 x 6 x 8 10 x 6 x 8; 5 axles, axles 2, 4, 5 driven and equipped with selectable transverse lock, axles 1, 2, 4, 5 steered, axle 3 liftable. Suspension Hydropneumatic suspension with axle load compensation; Hydraulically lockable; Manual or automatic levelling alternatively. Steering Dual circuit hydro semiblock steering with emergency steering pump; Active rear axle steering (axles 4, 5) with 6 different steering programs. Brakes Pneumatic dual circuit service brake with antilock system, acting on all wheels; Disc brakes; Hydraulic retarder integrated into transmission as sustained-action brake; Additional exhaust brake and constant throttle valve; Spring-loaded parking brake. Wheels 38595 170F 385/95R25 170F (14.00R25); Steel rims 9,50-25/1,7“ CR. Cab carrier 2420 Type 2.42 m; Adjustable driver seat with seat heating, armrests and pneumatic suspension; Co-driver’s seat; Steering wheel height and tilt adjustable; Power door windows; Tinted glass; Radio-preparation. Heating engine-dependant 12 Engine-dependant warm water heating with 12 kW heating power. Aircondition carrier 7 Aircondition for carrier cab with 7 kW cooling power. Drive lights With low beam, upper beam, (daytime running lights > 08/2012). Cruise control Automatic speed control including automatic brake control. Central lubrication carrier 6 Central auto lube for all lubrication points at carrier. Electronic immobiliser system Prevents uncontrolled carrier mobilisation; Incl. 2 electronic keys and 4 ignition keys. Miscellaneous Ascendencies; Loose stepladder; Pneumatic tire filling plug. Crane Telescopic boom HA60 12.5 m - 60 m; Single cylinder telescoping system, automatic telescoping; Attachments for all equipment and extensions; 5 sheaves integrated in boom head for max. capacity of 77.7 t. Counterweight 43 tons Outriggers H-4-Point design; Vertical and horizontal movement fully hydraulic; Manual or automatic levelling alternatively; 4 outrigger bases. Outrigger pads 028-038 4 round outrigger pads, front A = 0,28 m 2 , rear A = 0,38 m 2 ; With transport position at vertical cylinder. Outrigger load indicator Displayed in LMI crane cab. Boom luffing 1 luffing cylinder with automatic lowering brake valve. Rotary drive 1 slewing gear unit with spring-loaded multi-disc brake; Different operating modes selectable. H1 Hoist with spring-loaded multi-disc brake; Twist prevention for rope; Resolver (hoist rotation indicator). Engine 129-3a MTU (Mercedes); Output 129 kW (175 HP), torque 675 Nm, certifications in accordance with EURO MOT 3a, TIER 3, CARB. Exhaust system cpl. stainless steel, incl. spark arrester. Fuel tank 230 230 l; Fuel: Diesel. Drive Hydraulic system with power control; Hydraulic oil cooler. Control system Enabling 4 simultaneous working movements; Electric pilot controls via 2 two-axis joysticks; different control modes selectable for hydraulic circuits. Operator aids IC-1, with integrated load moment indicator acc. EN13000; Colour display; Displaying of current operating conditions, load charts, fault indicator; Signal lights indicating LMI-load; Crane data logger. Working range limiter Displaying and programmability of the work range limits by IC-1. Cab crane 088 Type 0.875 m; Tilt infinitely variable 20°; Seat heating; Sliding windows in door and rear; Fold-out front window; Extendable side pedestal, foldable front pedestal; Handrails; Tinted safety glass; Pull-down sun visor and light curtains; Radio-preparation. Heating engine-dependant 12 Engine-dependant warm water heating with 12 kW heating power. Aircondition crane 7 Aircondition in crane cab with 7 kW cooling power. Miscellaneous Safety balustrade and handrails for crane access. Diverse Illumination 1 x adjustable for work prefield at crane cab, 4 x for outriggers; 1 x engine area crane. Anemometer Disconnectable, to allow use with all extensions. Contour safety marking Continuous, yellow reflecting bands at carrier sides and tail
