DOGUMAK TREYLER BASINCLI TANK SANAYI A.S.
Turkey, 5. Organize Sanayi Bölgesi 83561 nolu cadde. No:16 27600 Gaziantep Turkey

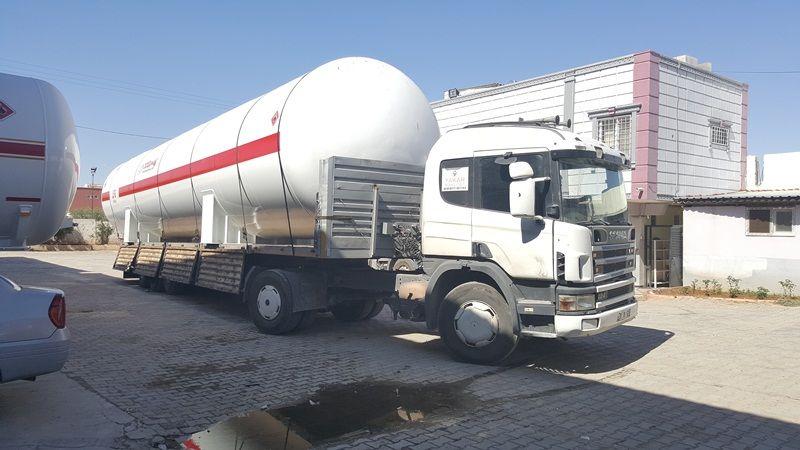

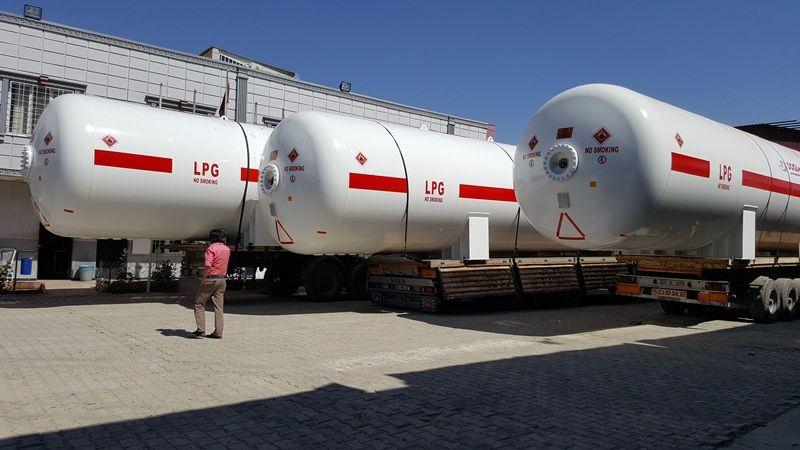

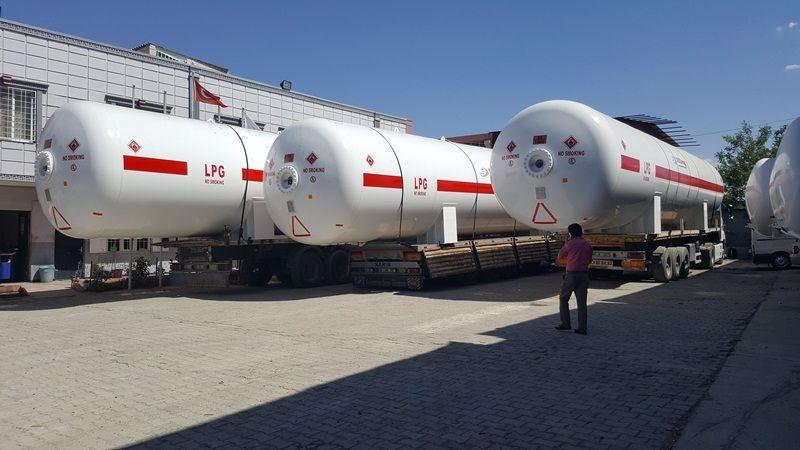

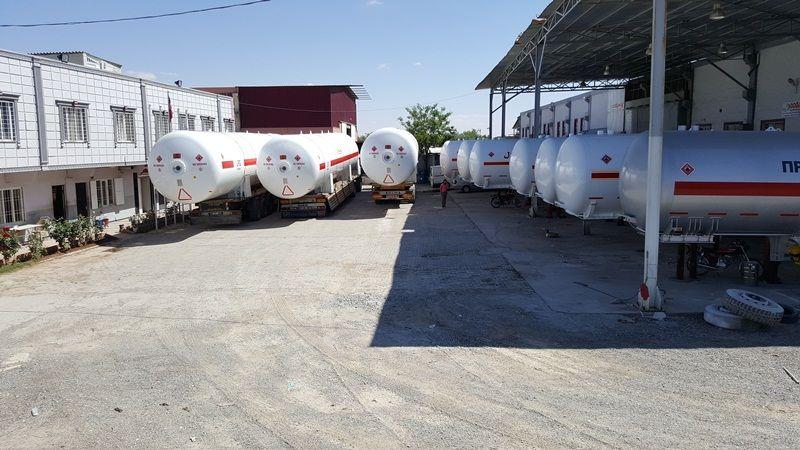

DOĞUMAK INDUSTRIAL LPG STORAGE TANKS
Model name: INDUSTRIAL LPG STORAGE TANKS,
Sale type: For Sale,
Price on Request
| Product ID: | Bau-000038683 |
| Section: | Transportation |
| Category: | Semi-trailers |
| Manufacturer: | DOĞUMAK |
| Model year: | 2019 |
| Offer type: | Buy |
Поделиться объявлением:
Offer Description
== More details (EN) == year: 2019 volume: 115 m³ DOGUMAK INDUSTRIAL LPG STORAGE TANKS GENERAL • Industrial tanks are means of LPG storage for cylinder filling plants or big scale fuel requirements. Industrial tanks have different models for installing over ground or under the ground. Our manufacturing standards are EN 13445 . Upon customer’s requirements design and manufacturing can be done according to AD2000 Merkblatter,EAC or other standards. • Manufacturing and testing of the tanks are made under supervision of an independent inspection company. • CE marking is provided. • Shell and heads are manufactured from P355 quality, fine grain pressure vessel steel according to EN10028-3 standard. Metallurgical and mechanical properties of steels are tested and verified. • All welded joints are tested according to the manufacturing standard. A combination of X-ray, ultrasonic, dye penetrant and magnetic particle tests are utilized. • After manufacturing, all tanks are subjected to hydrostatic pressure test. After this test, the connections of tank accessories are tested against leaks, using nitrogen. • Tanks are sand blasted and coated with premium quality paints. The right type and thickness combination of primer, undercoat and top coating are determined according to the above ground or under ground service. DOGUMAK quality will offer highest performance during the whole service life of tank. General Specifications Design Temperature :–20°C / +50°C Design Pressure :17,16 bar Test Pressure :24,54 bar Head Type :Ellipsoidals Standard Tank Volumes 10 m3 22 m3 30 m3 35 m3 45 m3 50 m3 60 m3 76 m3 93 m3 113 m3 118 m3 135 m3 185 m3 192 m3 Tank Accessories (10 m3– 60 m3) – Standard Description Quantity Size Manhole 1 Pc. DN400 Liquid inlet 1 Pc. DN50 Liquid outlet 1 Pc. DN50 Vapor 1 Pc. DN50 Drain 1 Pc. DN40 Safety relief valve 2 Pc. 2” NPT Pressure gauge 1 Pc. ¾” NPT Fixed liquid level gauge 2 Pc. ¼” NPT Magnetic level gauge 1 Pc. Special Tank Accessories (76 m3– 192 m3) - Standard Description Quantity Size Manhole 1 Pc. DN500 Liquid inlet 1 Pc. DN80 Liquid outlet 1 Pc. DN80 Vapor 1 Pc. DN50 Drain 1 Pc. DN40 Safety relief valve MULTIPORT. 3” NPT Pressure gauge 1 Pc . ¾” NPT Fixed liquid level gauge2 Pc. ¼” NPT Magnetic level gauge 1 Pc. Special CONTACT FOR MORE INFORMATION+90 549 229 0012 (RUSSIAN) +90 549 229 0001 (ENGLISH) +90 530 552 5478 (ARABIC, GERMAN) info@dogumakas.com export@dogumakas.com 5. Organize Sanayi Bölgesi 83561 nolu cadde. No:16 27600 Gaziantep Turkey
