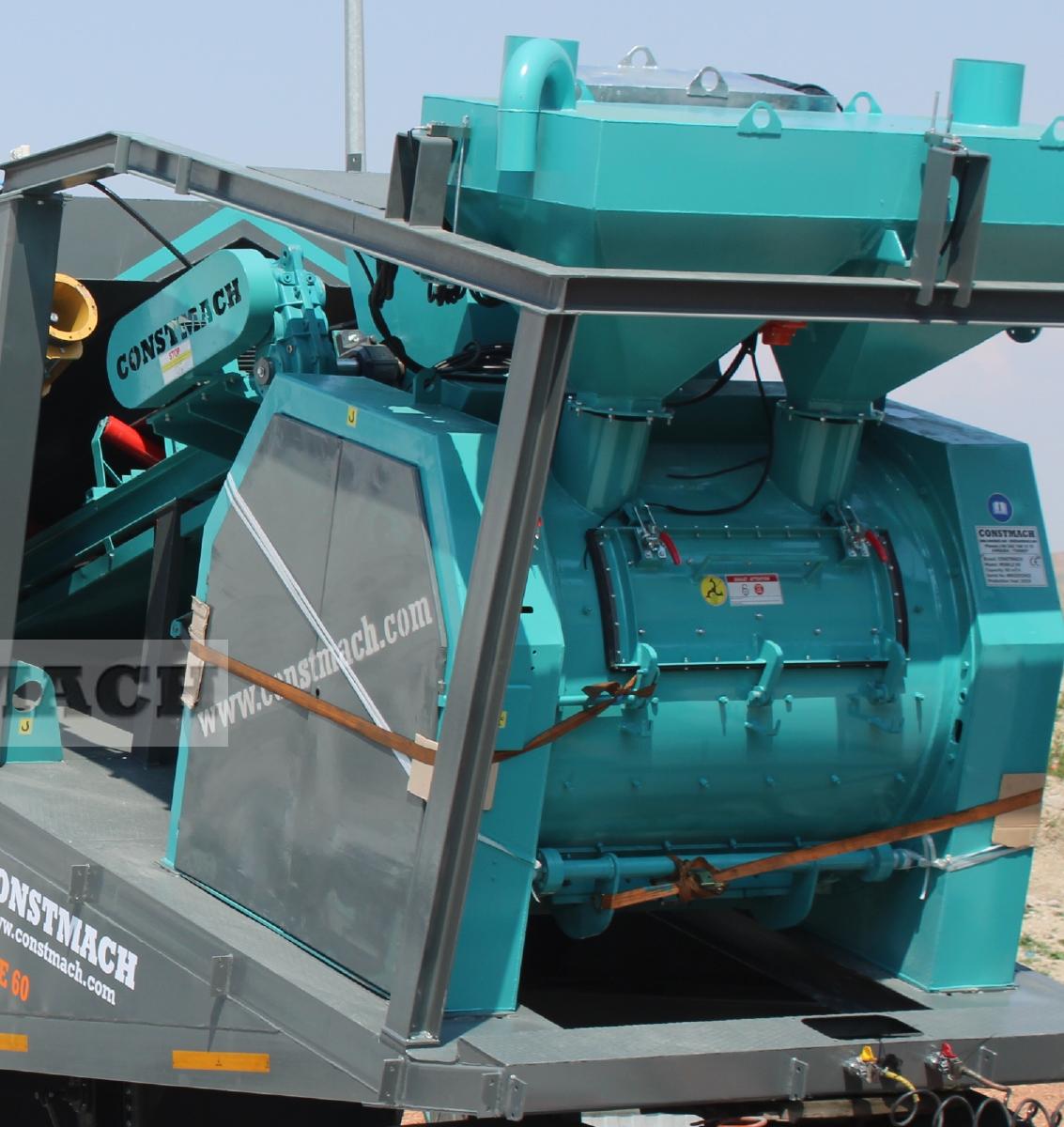

Constmach Concrete Mixer Single Shaft Mixer

Model name: Concrete Mixer,

Sale type: For Sale,

{{ cf.title_en }}: {{ cf.value }},

Net price:	0 €
VAT:	0 €
Total:	0 €

Price on Request

Product ID:	Bau-00006376
Price:	0 €
Section:	Construction machinery
Category:	Concrete equipment
Manufacturer:	Constmach
Model year:	2021
Offer type:	Buy

Поделиться объявлением:

Offer Description

Single shaft mixer technical specifications: Dry filling capacity: 1.500 lt Compacted concrete capacity: 1.000 lt Mixer motors: 37 kw, 1450 rpm (emtaş or equivalent brand – turkey), efficiency class: ie3 Gearbox: heavy duty type, (di̇şsan or equivalent brand – turkey) Bottom and side liner plates and mixing arms in anti-wear hardox 450 sheet (ssab – sweden) or xar 500 (germany), thickness 15 mm, minimum hardness 450 hbw; Mixing and scraping blades in ni-hard cast iron, hardness: 700 hbw Hydraulic power pack with manual pump for the emergency opening of the discharge door is present. All moving parts of the gearboxes and bearings are permanently lubricated by oil bath; High top cover (500 mm) with one inspection hatch is present. Hydraulically operated standard discharge door, with three limit switches (open, half-open, close). The closing is driven by a pressure gauge on the hydraulic power pack; Modular inspection platform with access staircase and handrails Mixing motors with insulating materials class h, protection class: ip55. Hydraulic power pack motor: insulating materials class h, protection class ip55, tropicalized. Motor of hydraulic system: 2.2 kw Automatic lubrication system (lincoln or equivalent – germany) is present. Bearings: fag or skf brand - germany Inner surface of discharging bucket is coated anti-wearing hardox 450 – 12 mm sheet metal. Constmach is the leader concrete batching plant, crusher and concrete block machine manufacturer of turkey since its foundation, 2002. Cement silos, sand screening and washing plants, mobile crushers are other product types which are manufactured by constmach. Our products are exported to over fifty countries on five continents. Usa, france, spain, canada, mexico, holland, switzerland, poland, ukraine, bulgaria, north macedonia, slovenia, slovakia, serbia, sweden, hungary, romania, latvia, egypt, morocco, are some of the countries where our plants are preferred by our clients. All of our products are ce certificated and covered with 2 years’ warranty.

POL. IND. FUENTE TECHADA CALLE LEON FELIPE Nº30 45450 ORGAZ Spain
